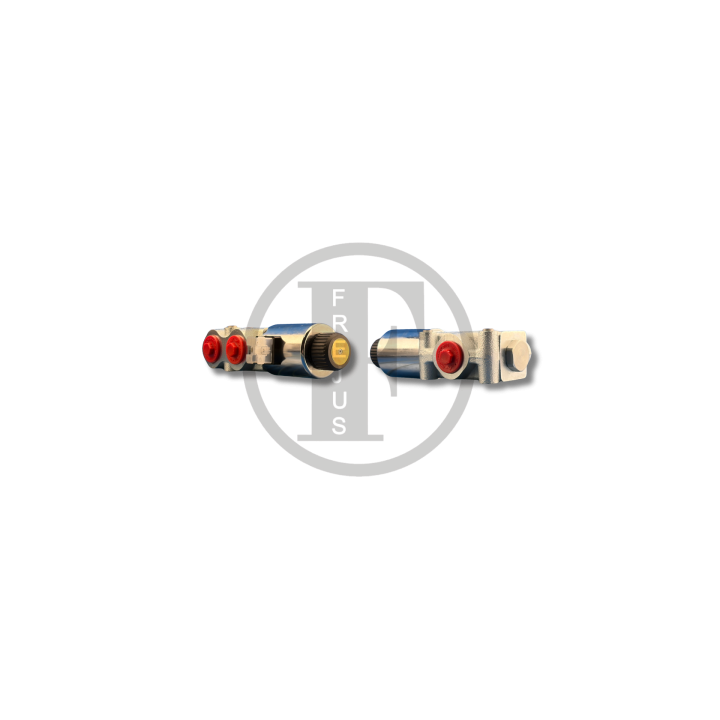

Electrovalve DFE20/3A18ES-W-201-12VDC, DFE20/3A-18ES-W200-24VDC, 12Z640075 Walvoil 3/2
Hydraulic solenoid valve Walvoil 3/2
Models: DFE20/3A18ES-W-201-12VDC and DFE20/3A18ES-W200-24VDC, 12Z640075
3-way, 2-position valve used to control oil flow direction in hydraulic systems. It allows switching the flow from one inlet to two outlets.
12-month warranty
Delivery rules
Return policy
Safety policy
Electro-hydraulic 3/2 directional control valve by Walvoil, designed for hydraulic power systems requiring electrically controlled oil flow.
The valve acts as a switching element, directing flow from the supply port to one of the working outlets. Commonly used in cylinder control systems, auxiliary circuits and hydraulic function switching.
Models and voltage:
-
DFE20/3A18ES-W-201 - 12V DC
-
DFE20/3A18ES-W200 - 24V DC
Operating parameters:
-
Flow rate: 140 l/min
-
Maximum working pressure: 200 bar
-
Maximum pressure with drain line connected: 315 bar
Hydraulic function:
-
1 inlet (pressure supply)
-
2 working outlets
-
3-way, 2-position valve
